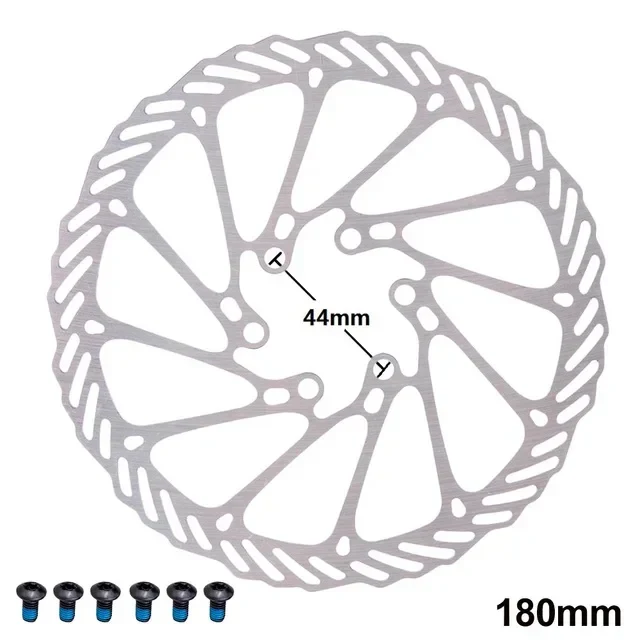

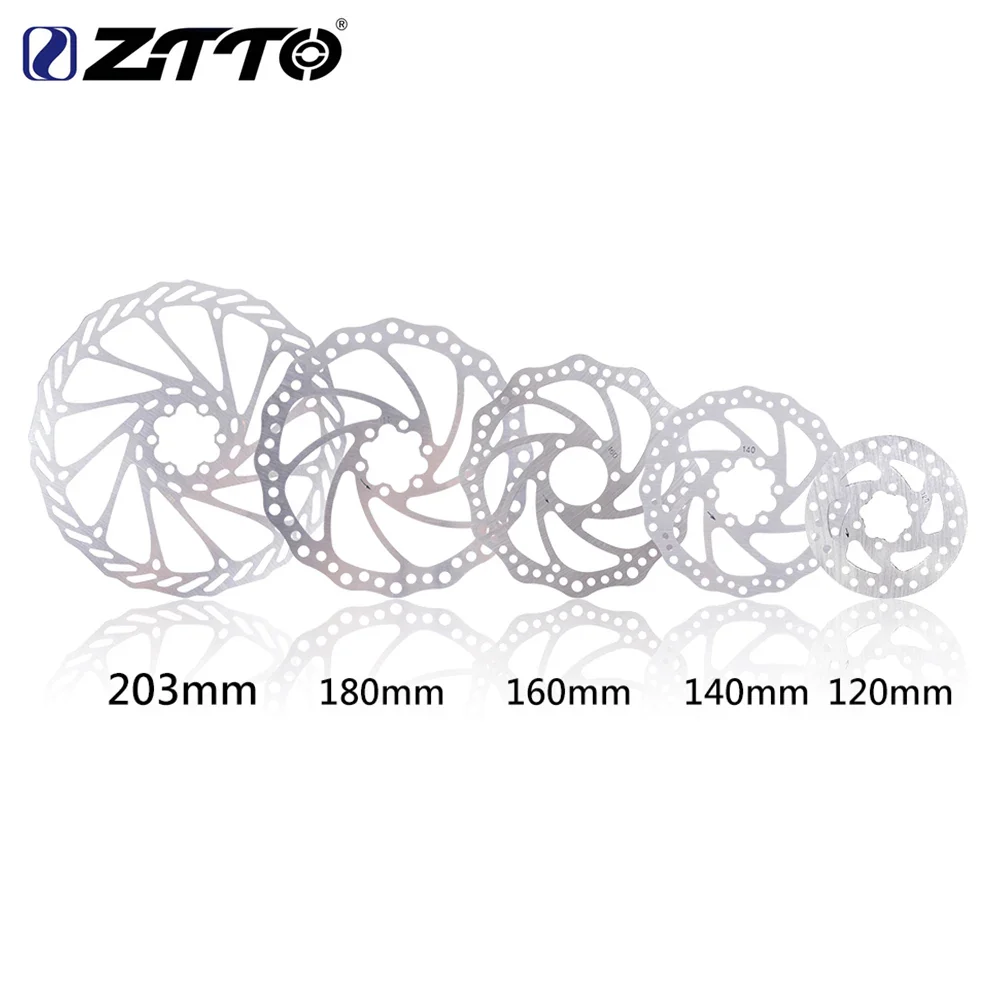

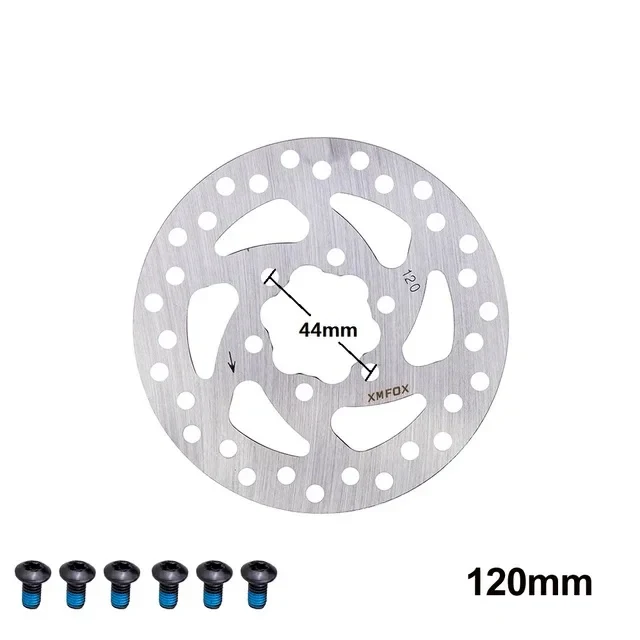

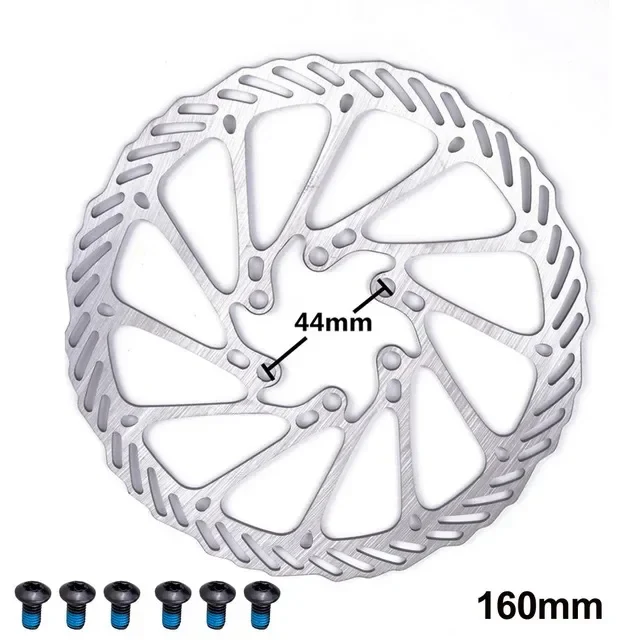

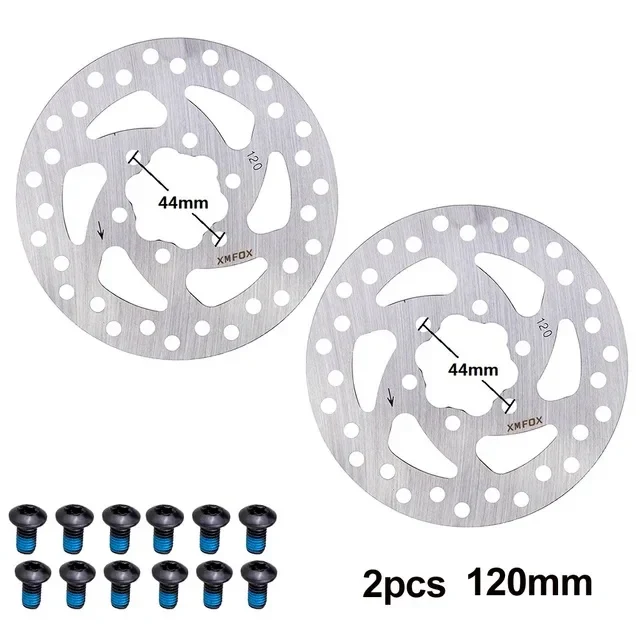

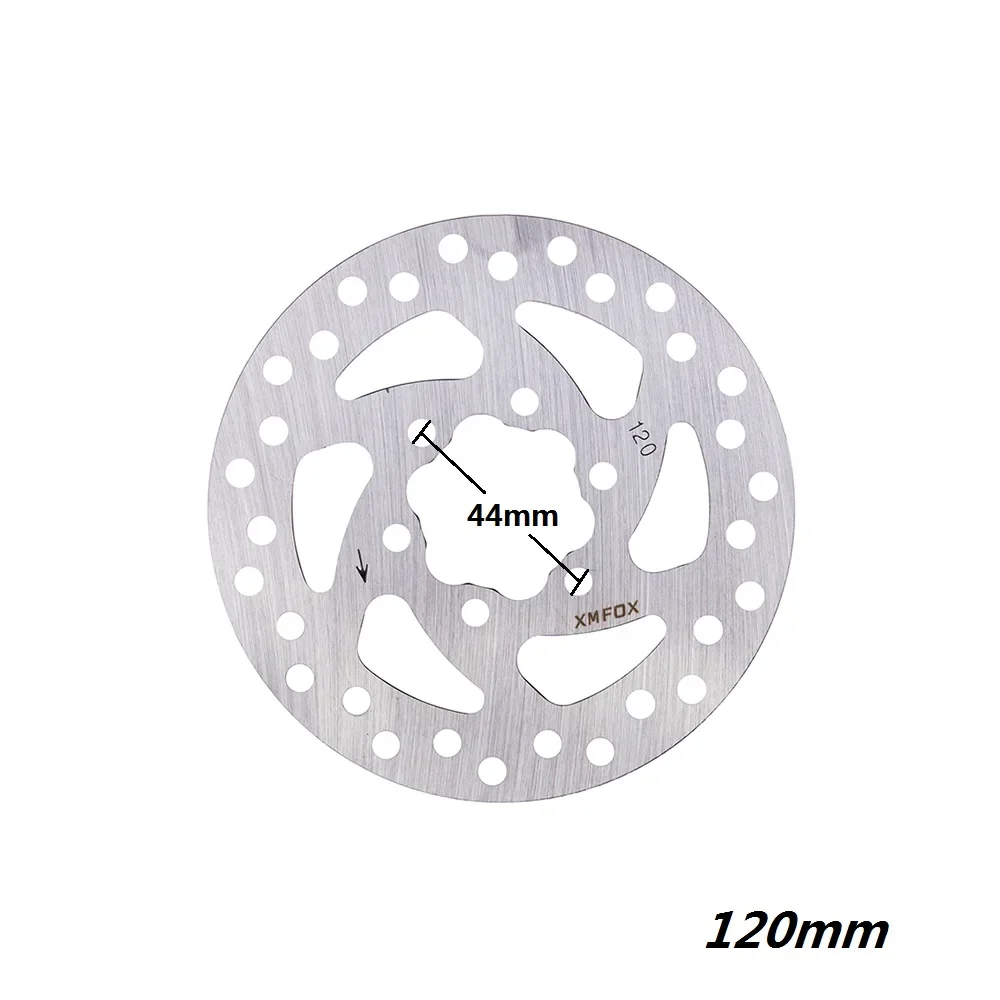

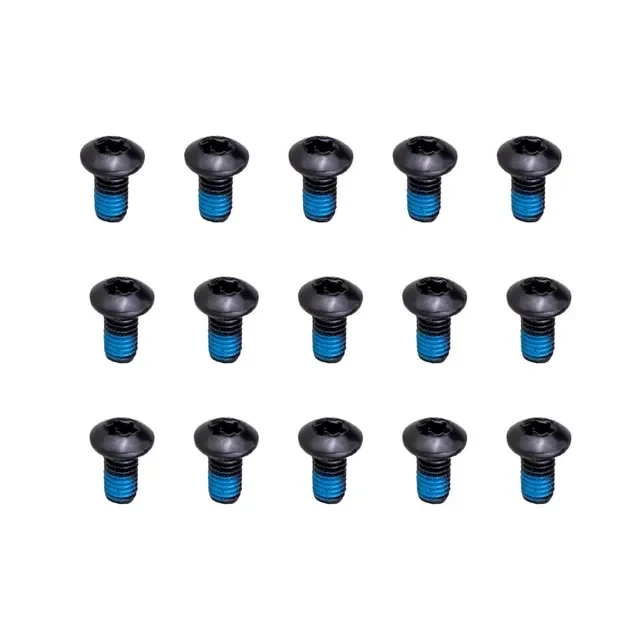

ZTTO Bicycle Brake Rotor 120 140 160 180 203mm 6 in Stainless Steel Hydraulic Brake Rotor MTB Road Bike Disc Brake With T25 Bolt

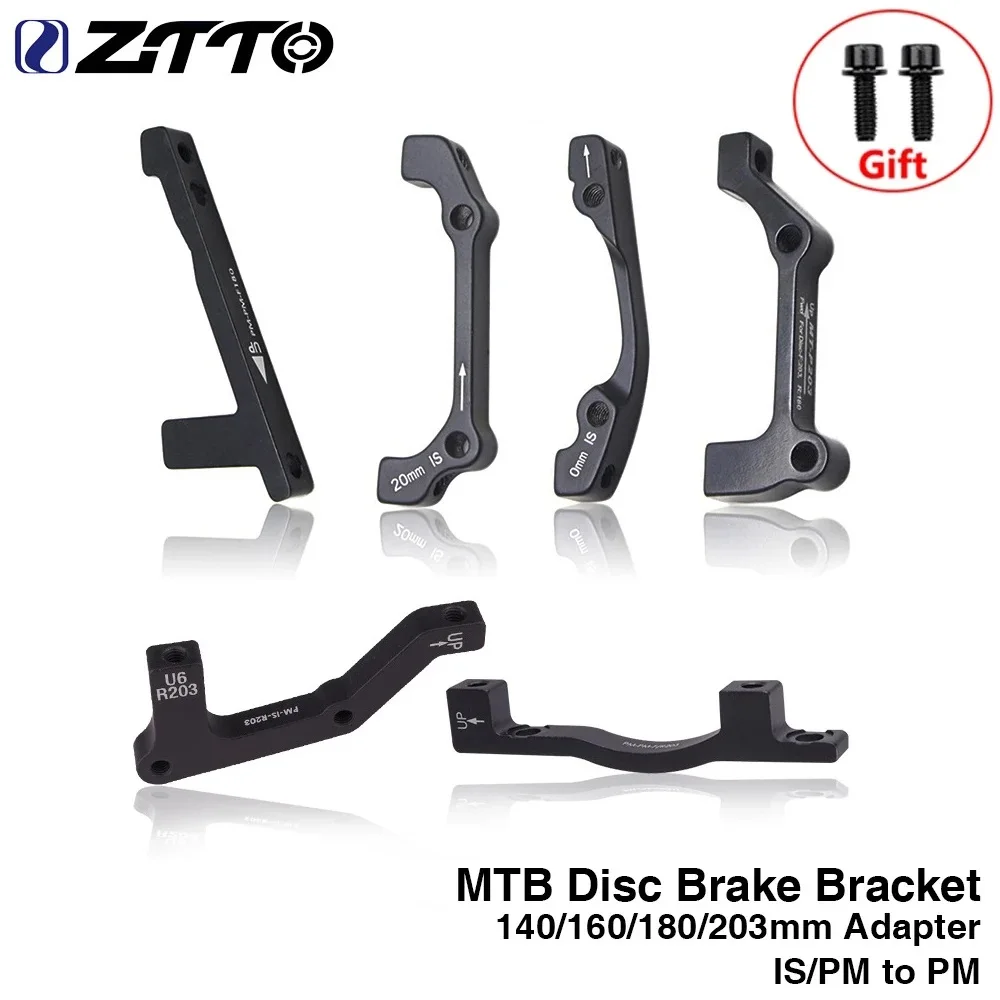

ZTTO MTB Disc Brake Adapter

7075 light weight high-strength aluminum alloy

T6 hardened treatment

For MTB Road Line Pulling Hydraulic Disc Brake

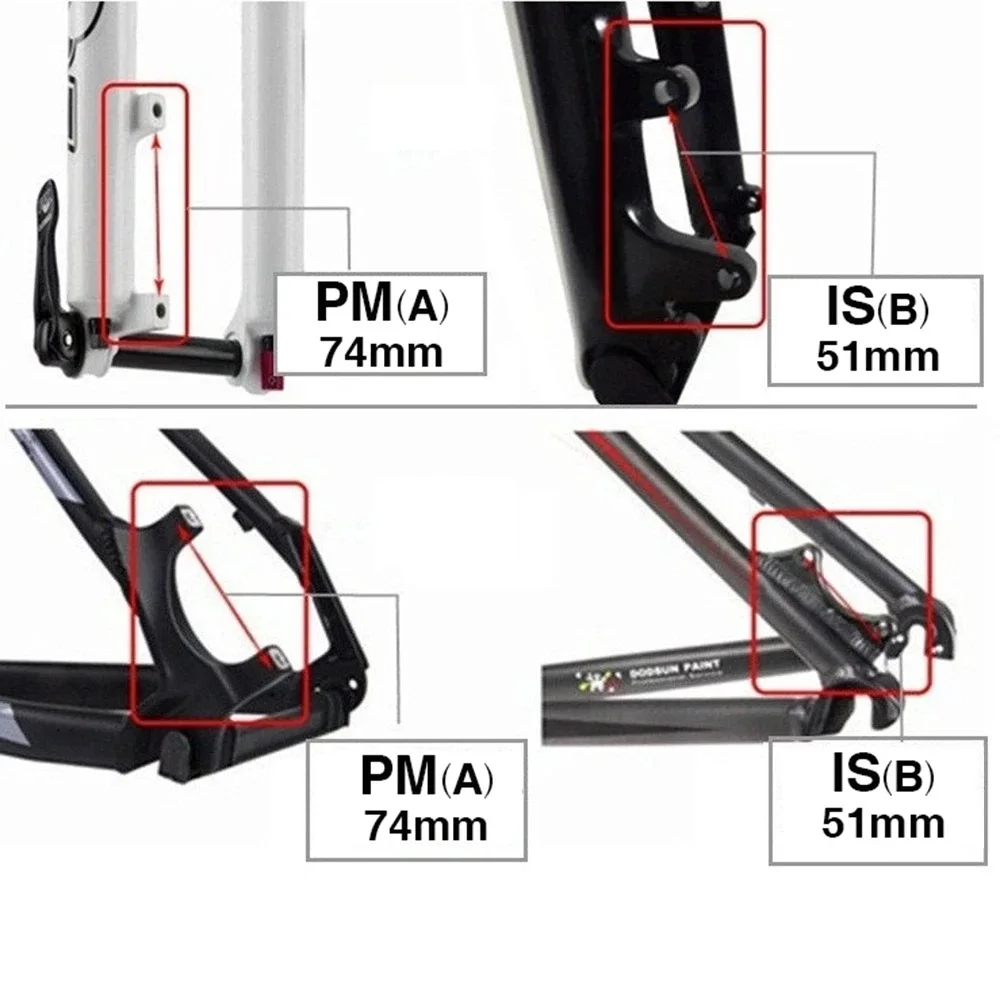

IS/PM TO PM

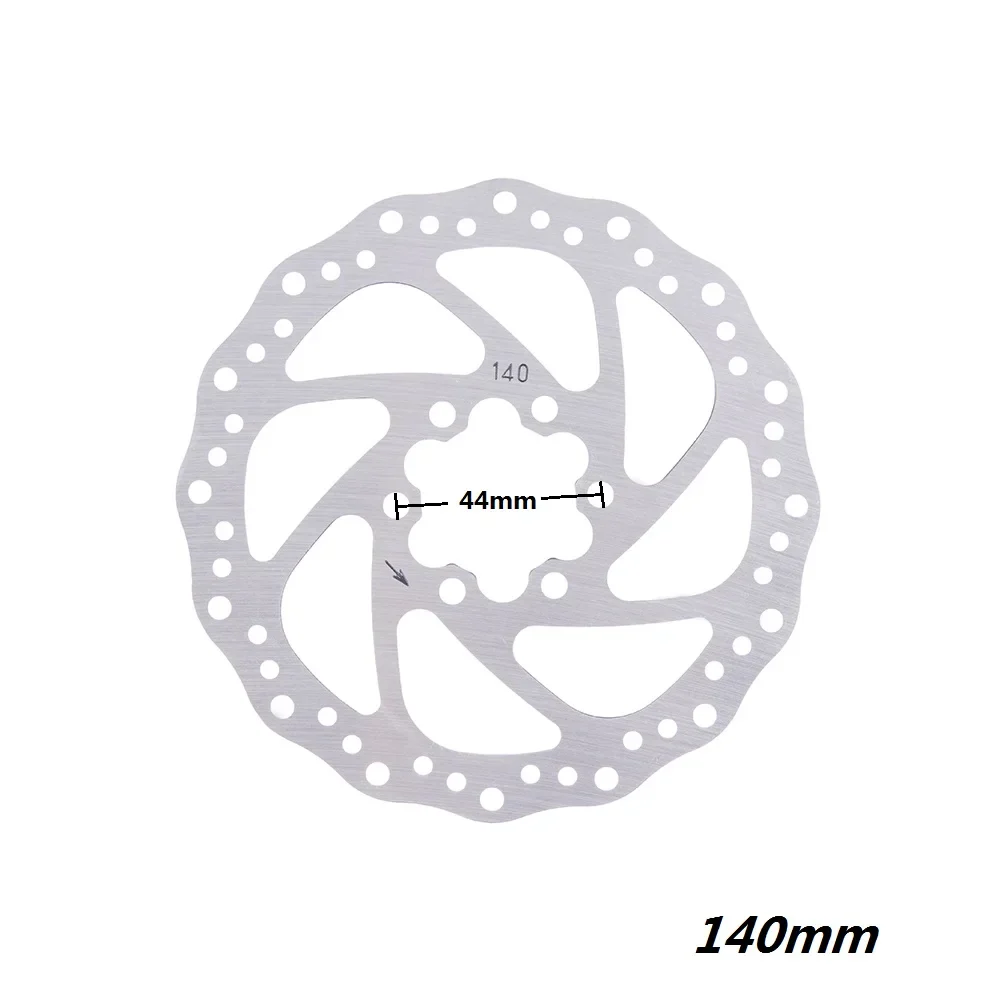

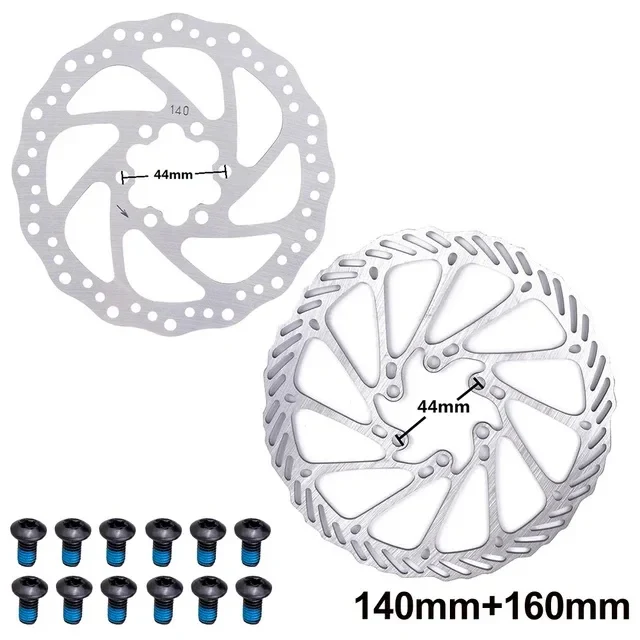

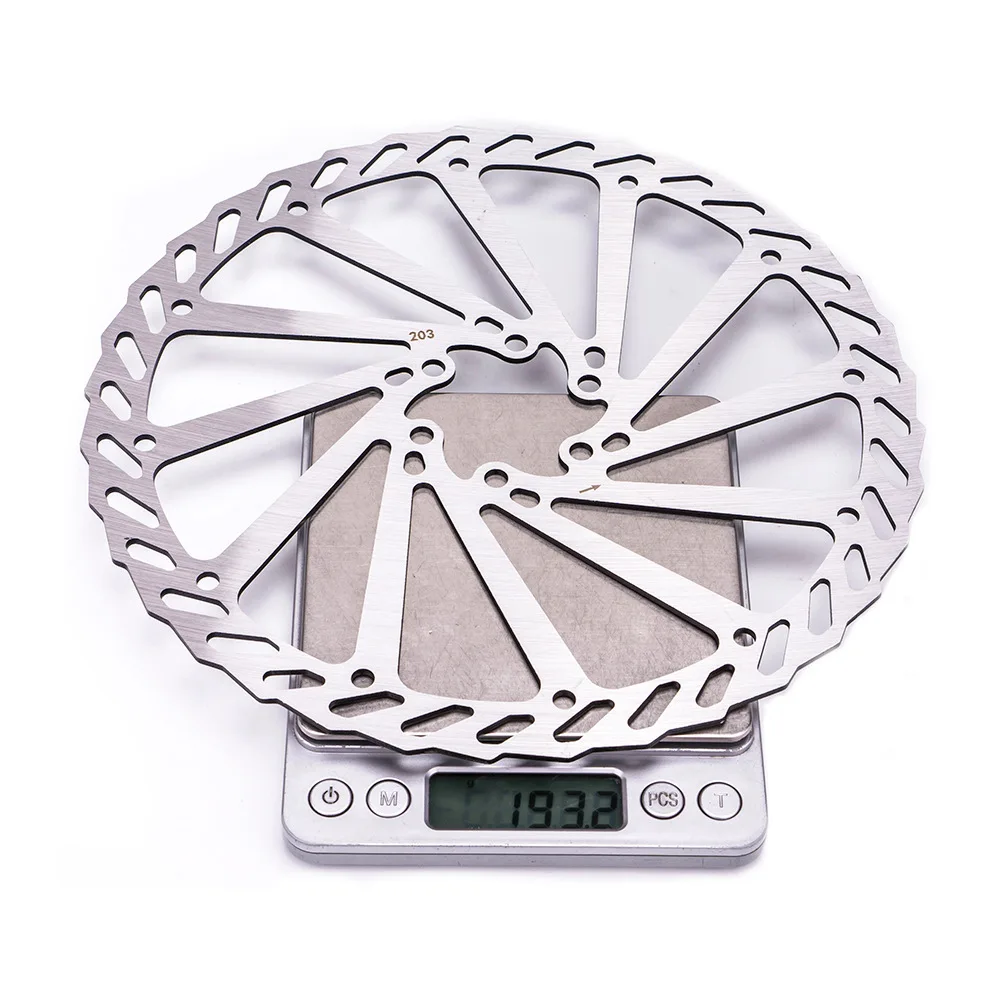

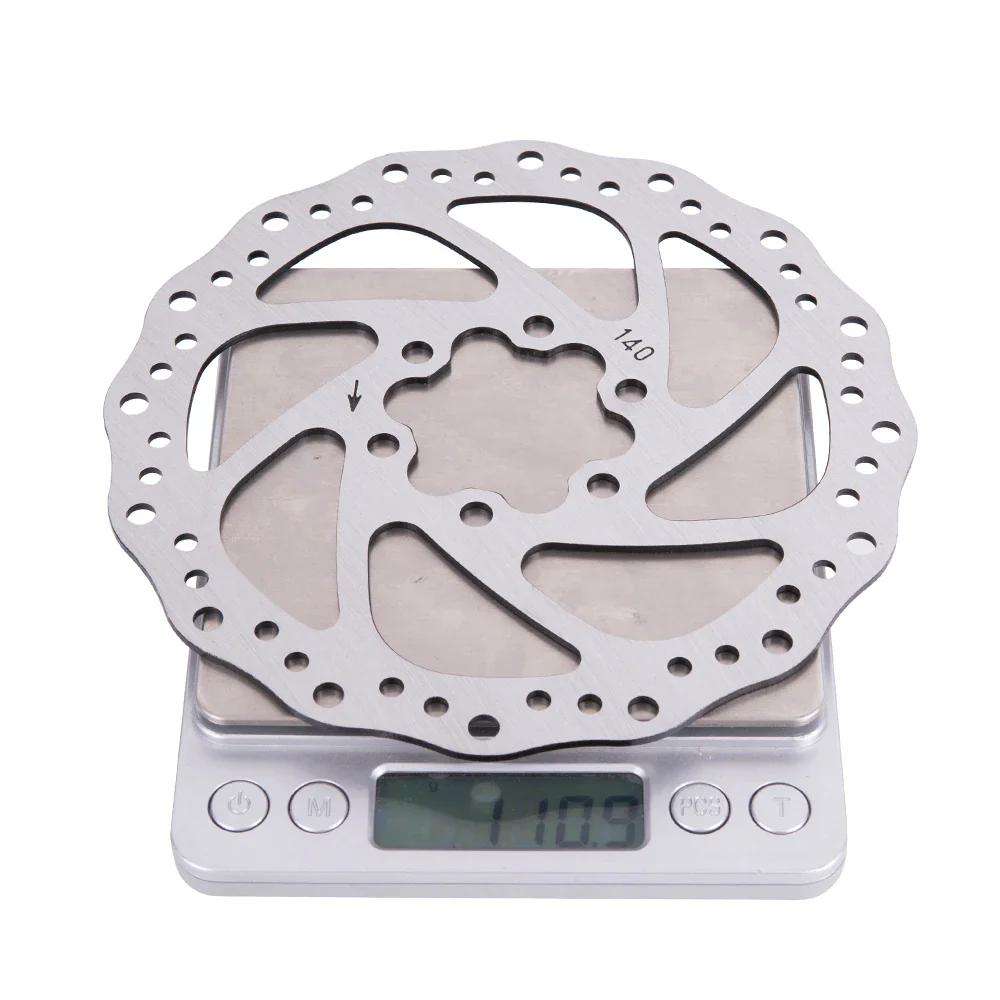

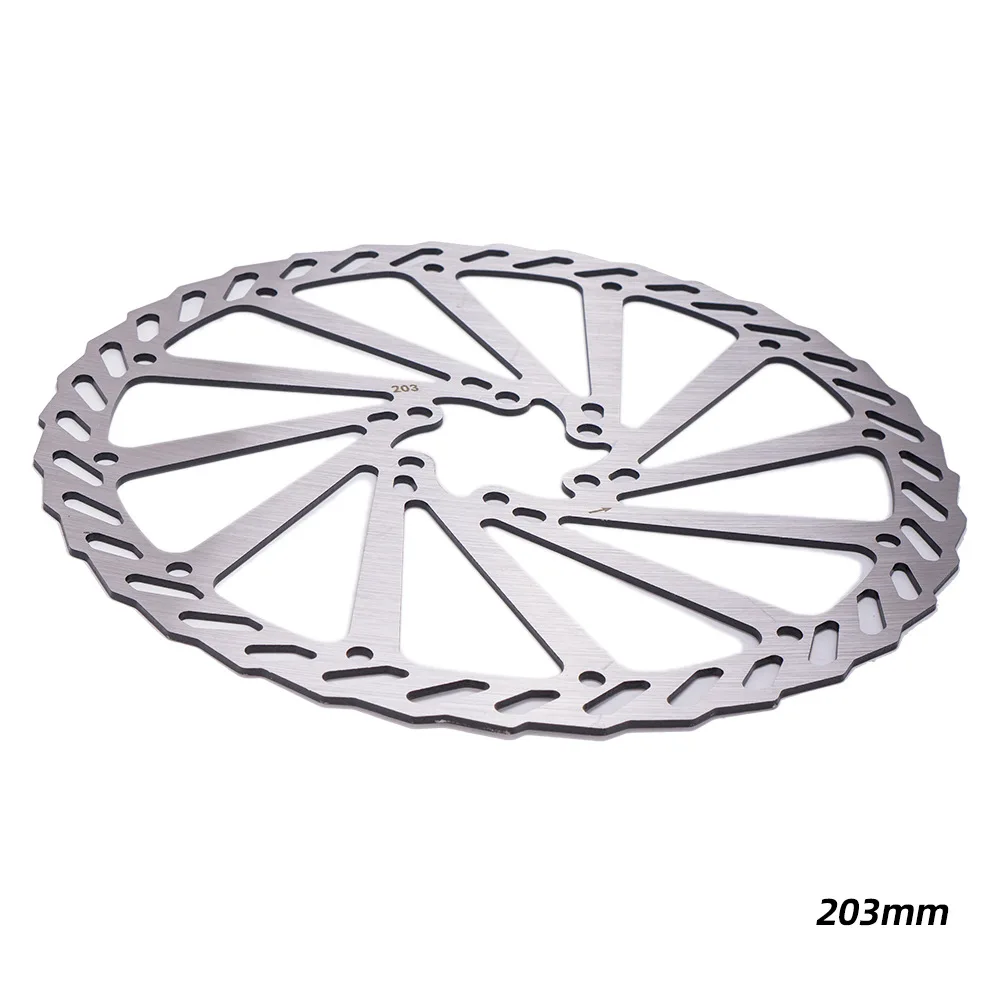

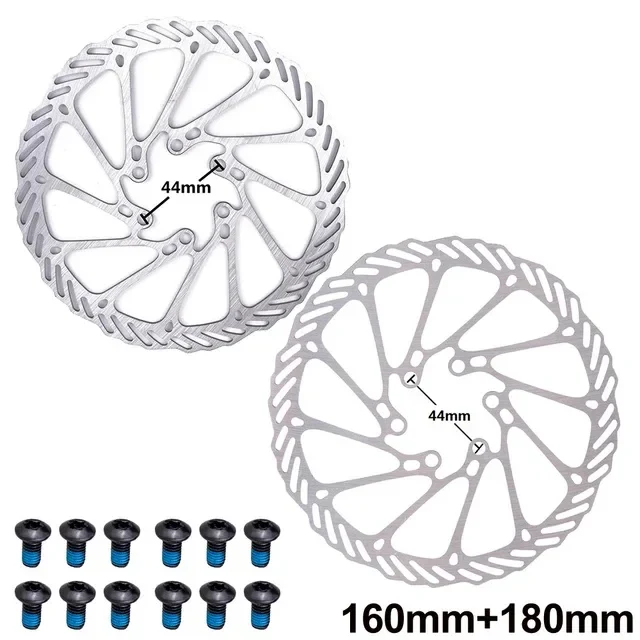

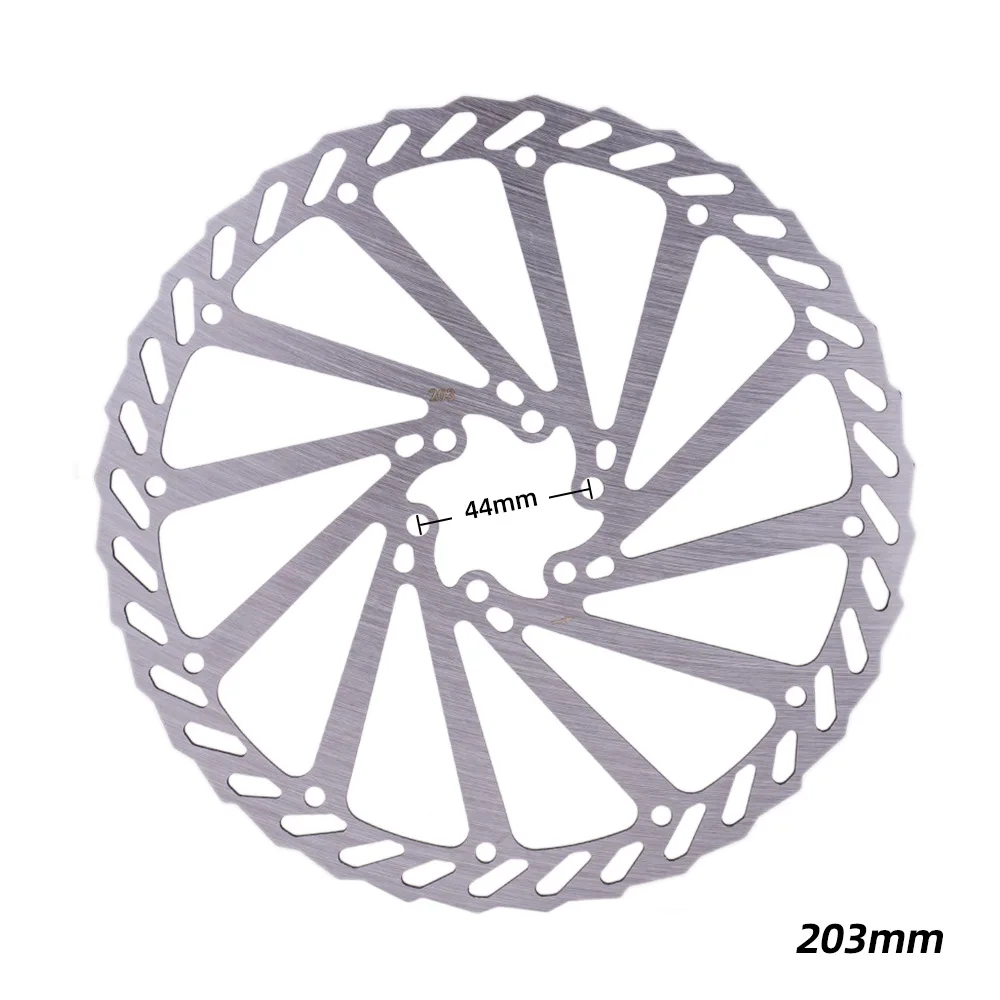

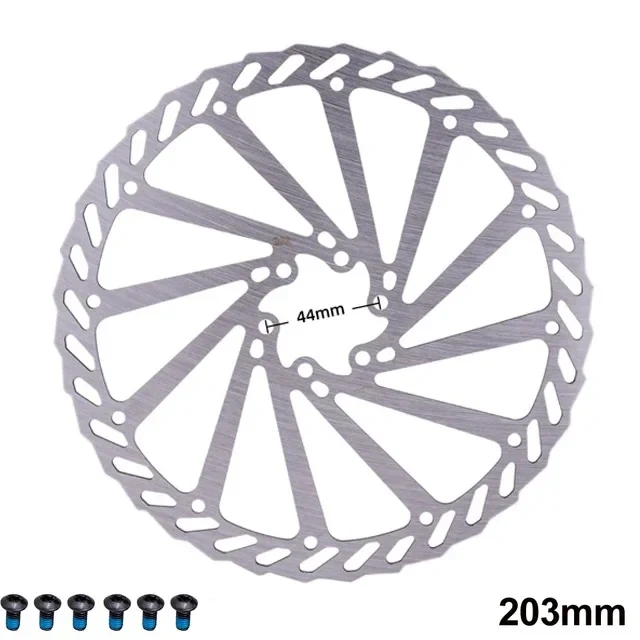

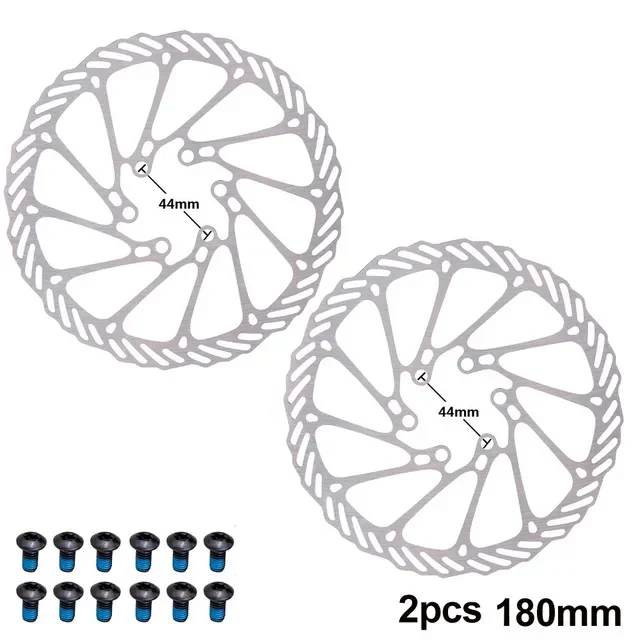

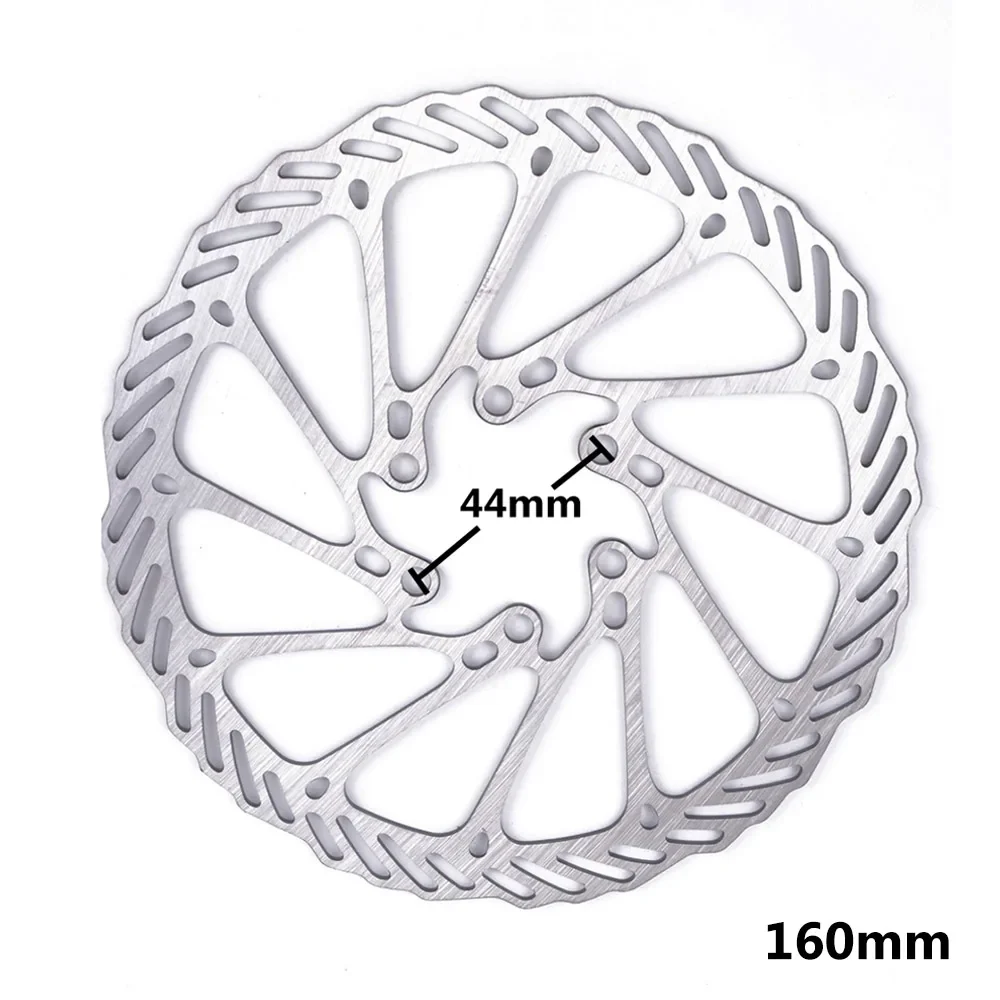

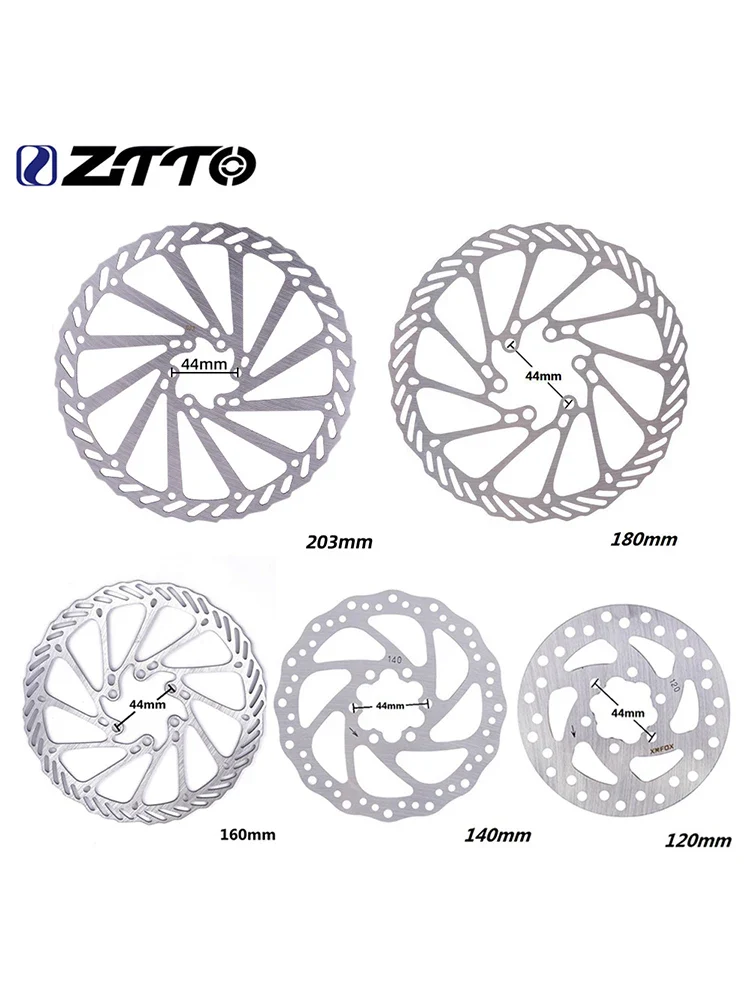

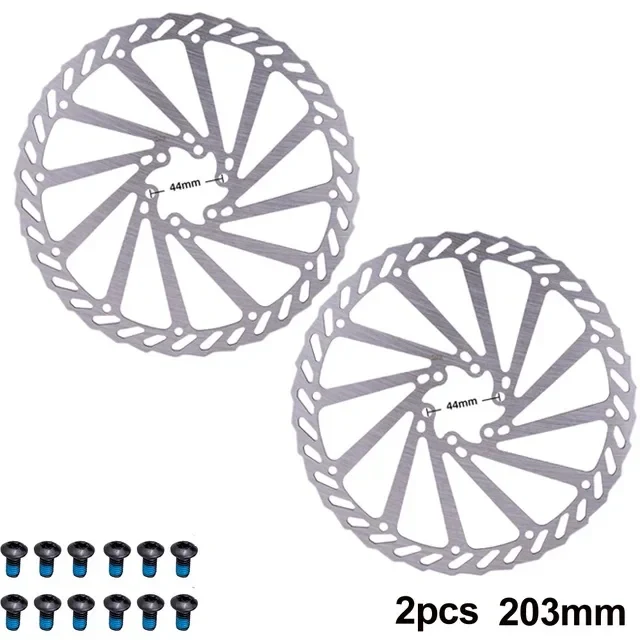

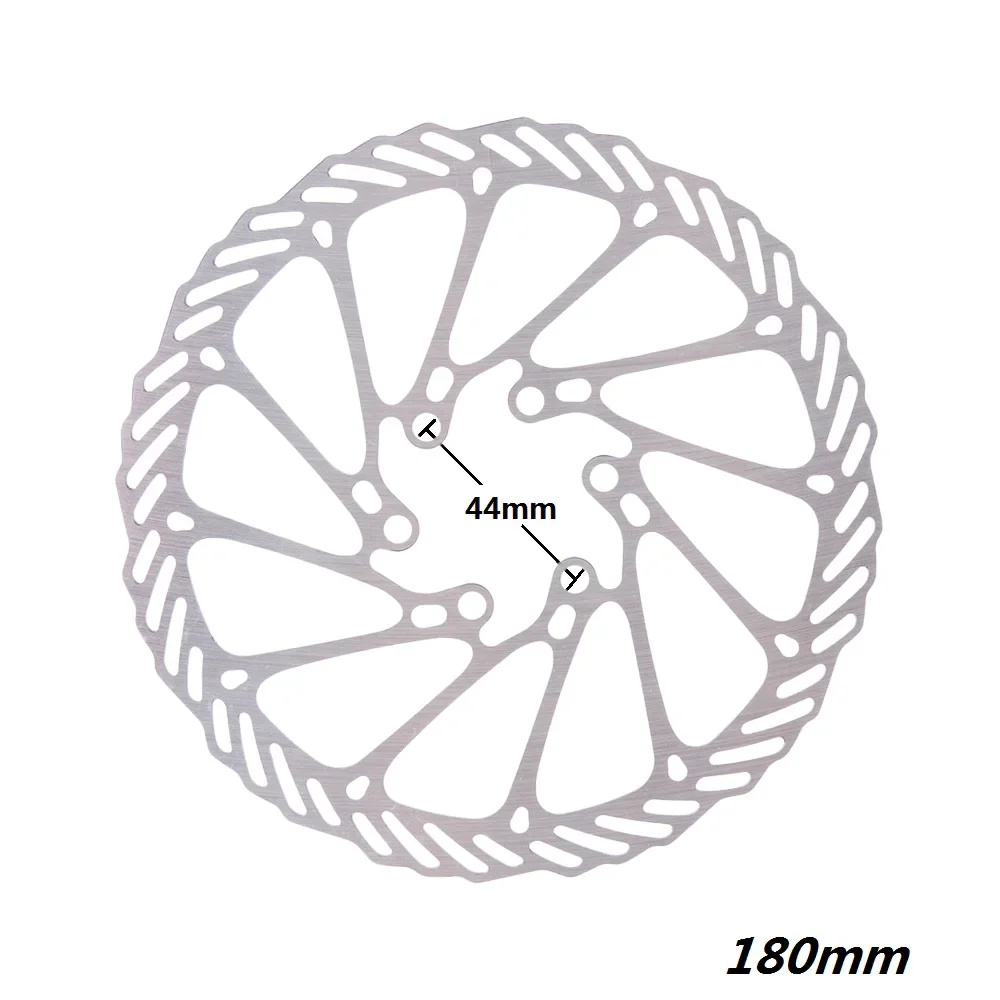

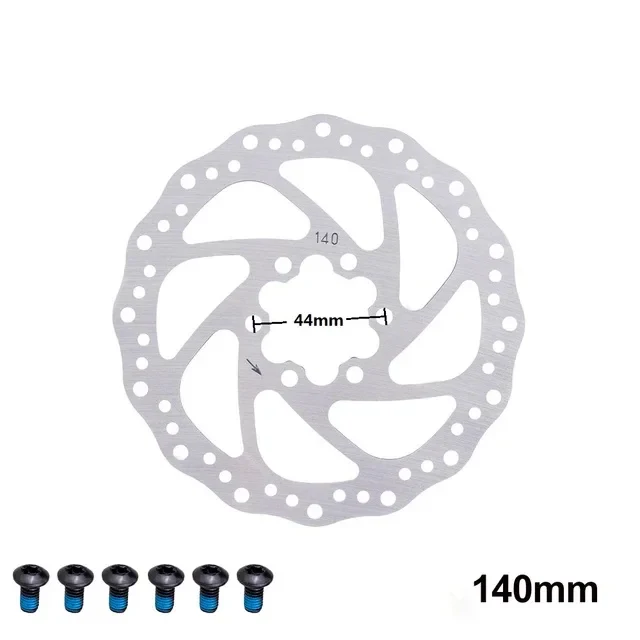

140/160/180/203mm Brake disc rotor

Free Gift is spacer and screw

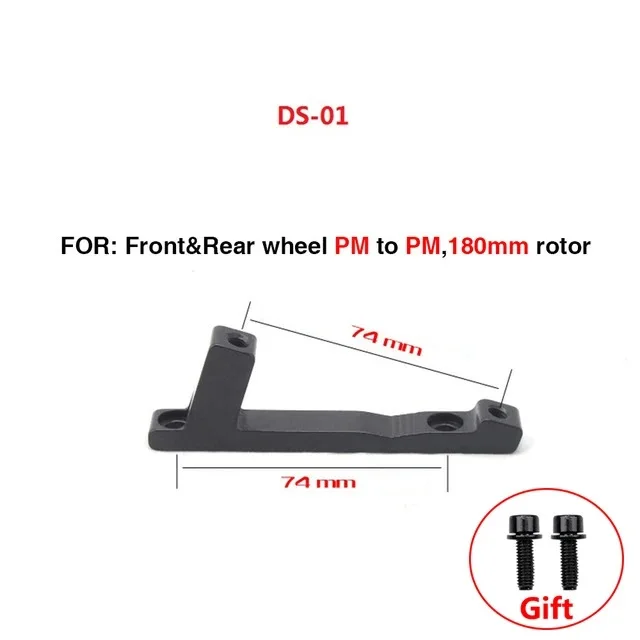

DS01

(Front &Rear wheel: PM to PM,180mm rotor)

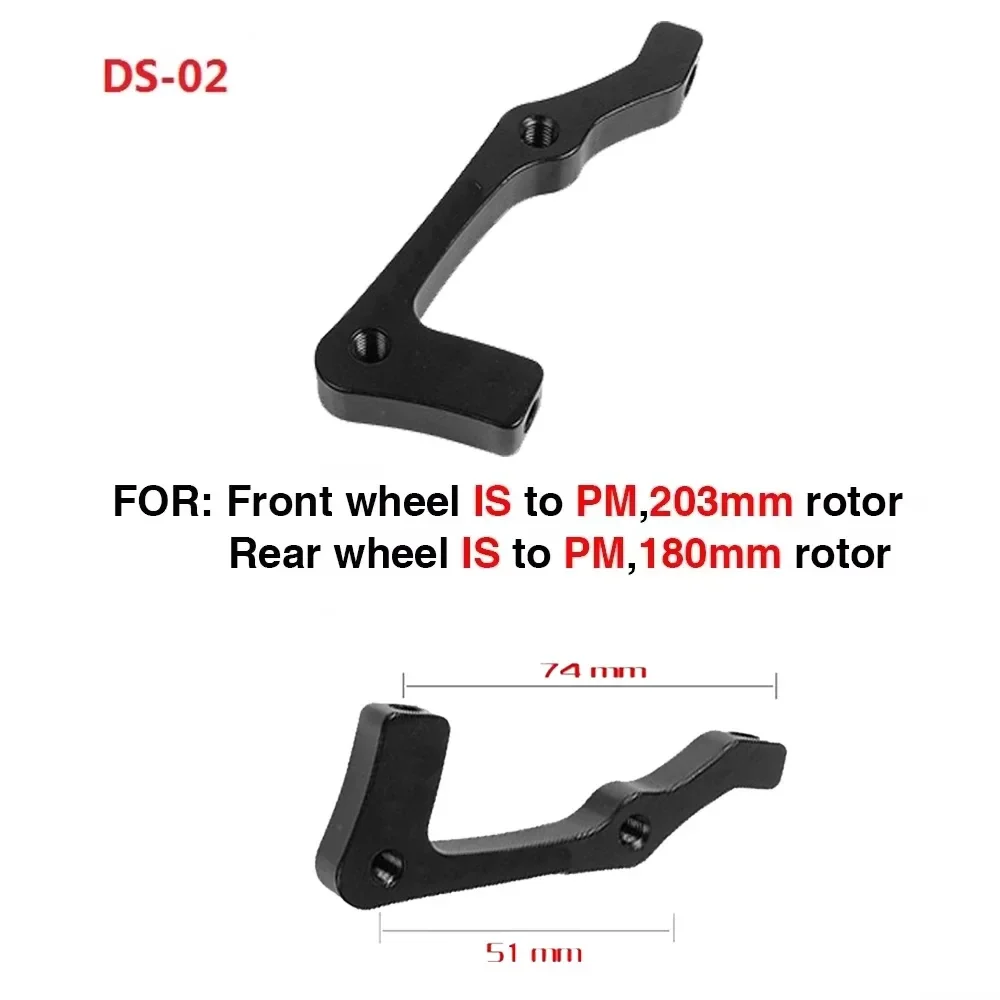

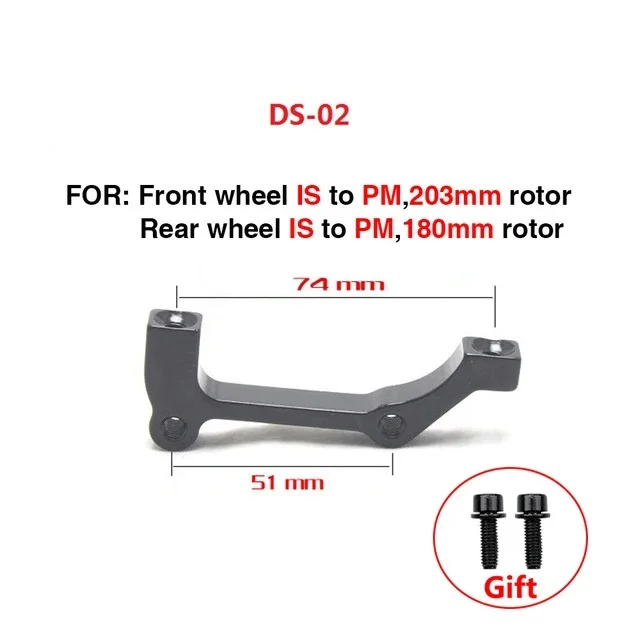

DS02

(Front Wheel: IS to PM,203mm
Rear Wheel: IS to PM,180mm)

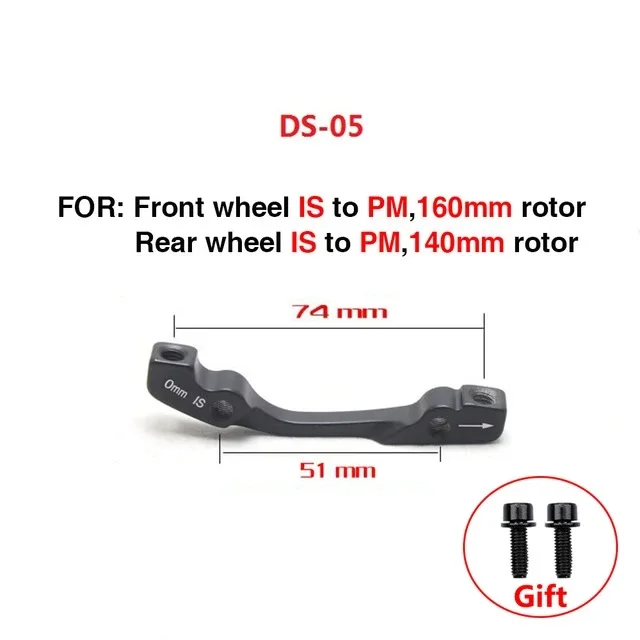

DS05

(Front Wheel: IS to PM,160mm
Rear Wheel: IS to PM,140mm)

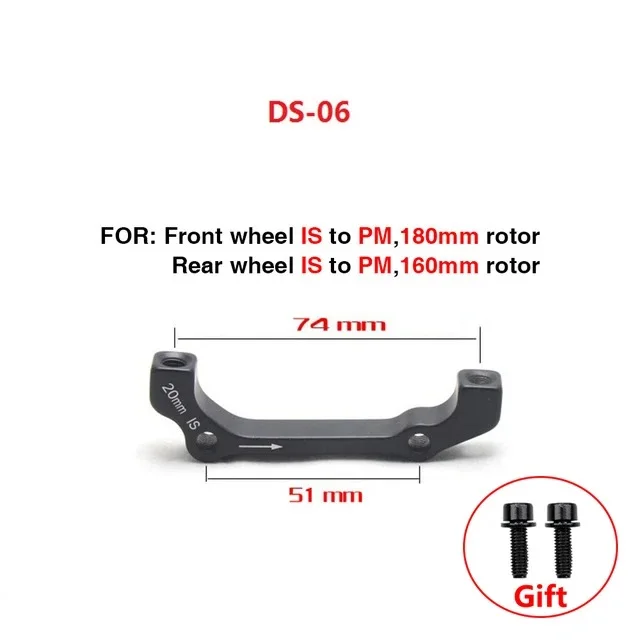

DS06

(Front Wheel: IS to PM,180mm
Rear Wheel: IS to PM,160mm)

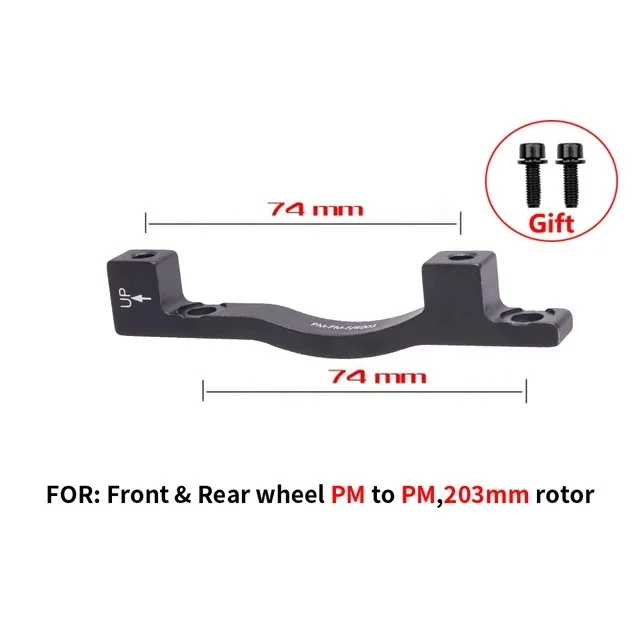

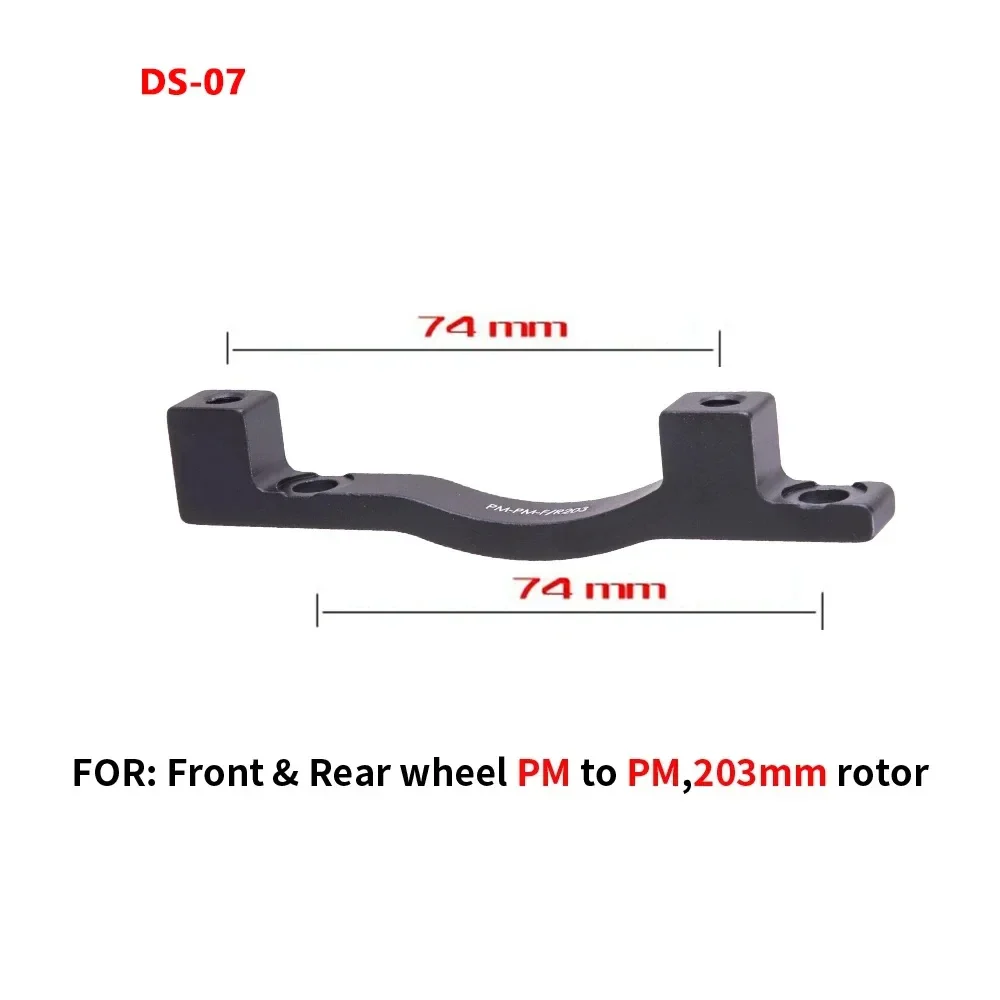

DS07

(Front Wheel&Rear Wheel:PM to
PM,203mm)

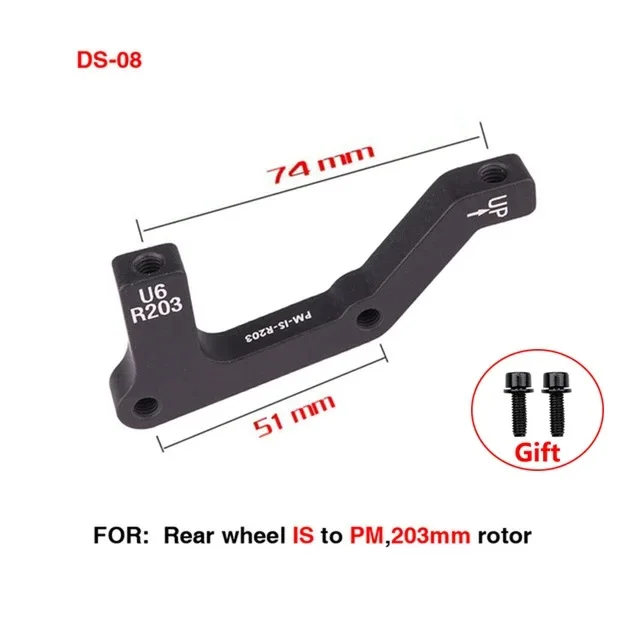

DS08

Rear Wheel:IS to PM,203mm)

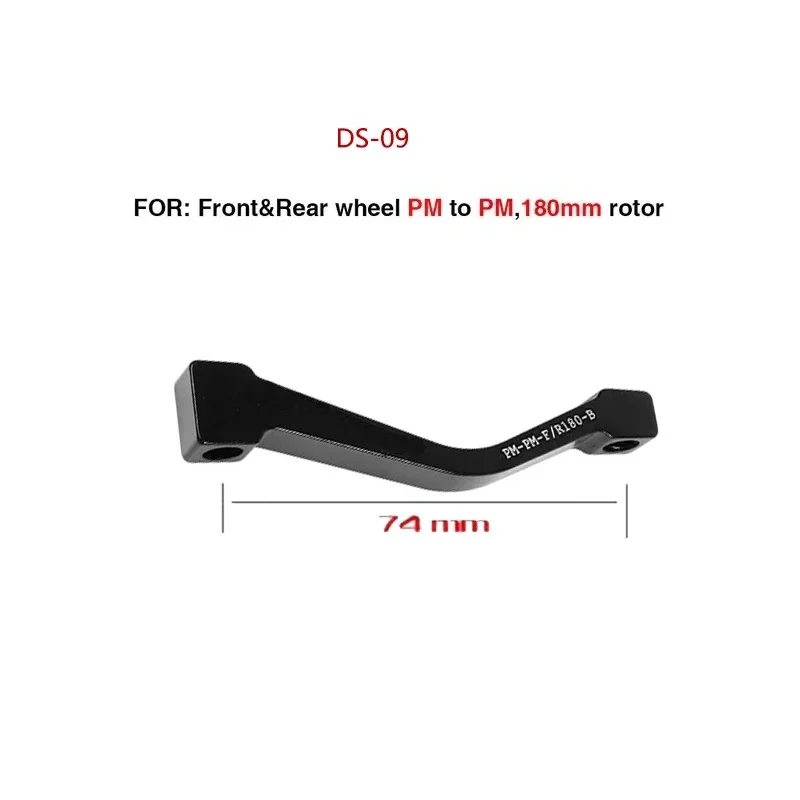

DS09

(Front &Rear wheel: PM to
PM,180mm rotor)

Package:

1 piece of disc brake adapter
(The adapter does not include pacers and screws.)

REPAIR HELP

Steps

1. Remove the wheel.

2. Remove the used disc from the wheel.

3. Clean hub and new disc with isopropyl alcohol. Ensure that the hub threads and hub mounting surface are free of dirt and grit.

4. Place the disc on the hub mounting surface with the markings facing outward from the spokes. Ensure the arrow the disc is pointing in the direction of forward wheel rotation.

5. Install all 6bolts and snug evenly.

6. Tighten the disc screws (×6) in a star pattern to 6 Nm.

Caution: Do not over tighten the disc screws, to prevent damage to the threads, disc or screws.

7. Reinstall the wheel.

8. Spin the wheel to ensure that the disc is not rubbing against the brake pads. If the disc rubs, re-align the caliper. Refer to the Brake Installation and Set-up instructions, as needed.
